Подробная информация о продукте:
Оплата и доставка Условия:
|
| Polarity: | A/B/C | Loss data: | Elite loss/Standard loss |
|---|---|---|---|
| Connector type: | Female /Male | Fiber qty: | 8 /12 /24 core |
| Fiber type: | OS1 / OS2 / OM1 / OM2 / OM3 / OM4 | Insert loss: | ≤0.35 dB (Elite) |
| Выделить: | OM4 MT FA Module,OM3 MT FA Module,0.35dB MT FA Module |
||

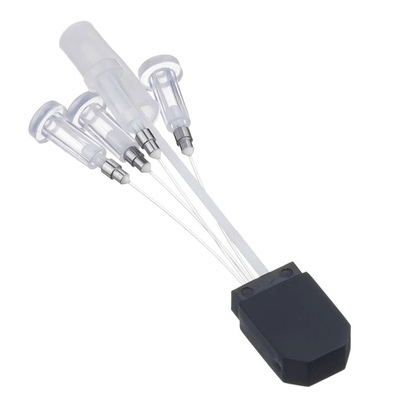

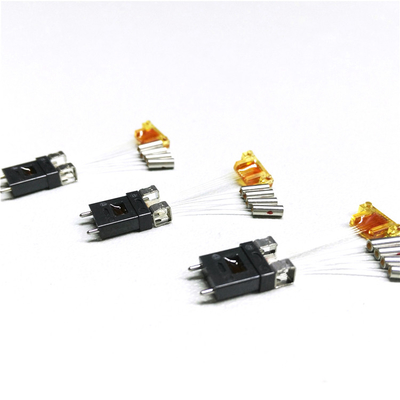

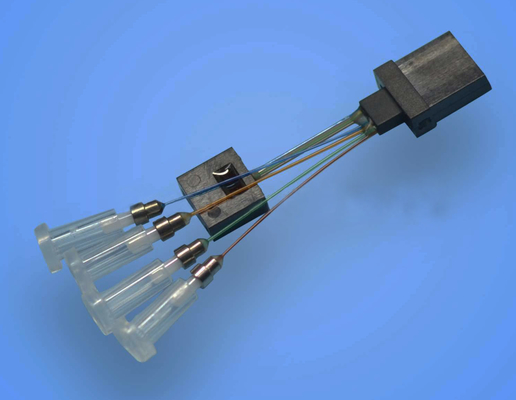

0.35dB Ferrule Patch Cord OM3 OM4 MT FA Module

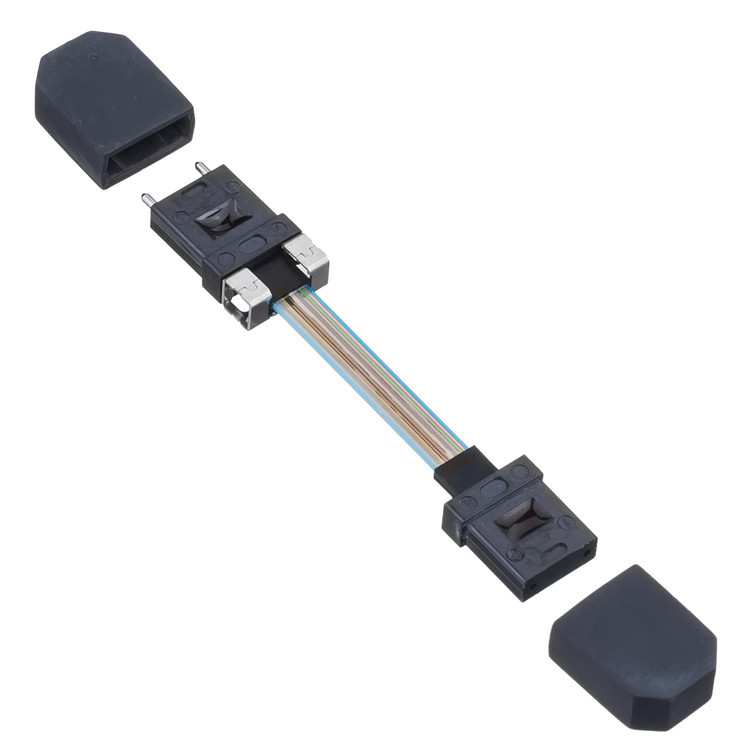

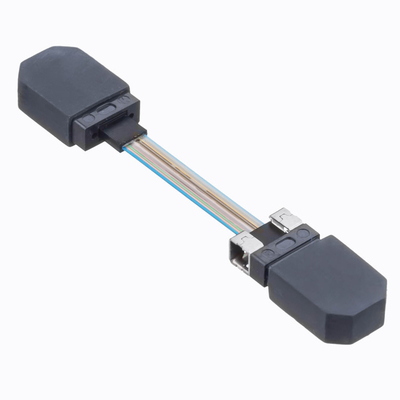

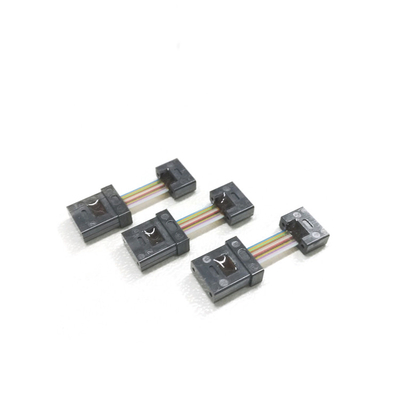

MT-MT Ferrule High Precision Fiber Optical Patch Cord OM3 OM4 MT FA module
MT-MT Patch Cords are used to provide optical connection for fiber optic electronics. The use of the patch cord provides a quick and easy method for routing fiber patches in data centers, head-ends, cellular hubs and central offices.
Features:
Connector A: MT ferrule ,MTP/MPO
Connector B: MT/Prizm/FA/PZ/Laser-cleave
Fiber shape: ribbon
Fiber count: 12
Fiber type: OM3, OM4; OM1, OM2;OS1,OS2;
Length: 20~100mm, and customized length available
Length tolerance: +300um/-0um
Optical Performance:
Passive coupling with guide pins and 0, 0r 8 degrees
Active coupling with light source and 0~ 45 degrees
Passive coupling with guide pins and 90 degrees
MT IL ≤0.50 dB typical 0.20dB
MT RL≥20dB
Operating case temperature -40~+85 oC
Application:
1. QSFP, QSFP28, QSFP-DD, Micro QSFP, CXP, CFP, CDFP, MiniPod and any parallel optical transceiver modules
2. Ethernet optical network, Infiniband optical network, and Fiber Channel network
Specification:
| Connector | MT-12C | MT-24C | |||
| Polishing | SM/UPC | MM/PC | SM/APC | SM/PC | MM/PC |
| Insertion Loss(max) | ≤0.6dB | ≤0.50dB | ≤0.65dB | ≤0.75dB | ≤0.60dB |
| Return Loss(min) | ≥50 dB | ≥35 dB | ≥60 dB | ≥40dB | ≥20dB |
| Tensile Strength | <10kg | ||||
| Durability | <0.20 dB typical change, 500 matings | ||||
| Repeatability | ≤0.1dB | ||||
| Storage , Operating Temperature [°C] | -40~+85 | ||||
packing information:
| Products Packing | |
| Inner packing | 1piece per plastic bag |
| Min order | 1pieces |
| 10 pieces weight | 0.2-3kg |
| Outer packing | Carton box |
