| Model Type: | lgx cassette module 1x8 1x16 box fiber optic plc splitter | Length: | Customized Lengths(1m/2m/3m...+1 |
|---|---|---|---|
| Model: | SINGLE MODE / MUTI MODE | Insertion Loss (dB): | ≤0.25 |
| Connector: | SC FC LC ST APC | Сертификация: | ISO9001/ISO14001/OHSAS18001/TLC |
| Выделить: | SC LGX cassette module,1550nm FC Fiber Optic Splitter,1x8 Fiber Optical Splitter |
||

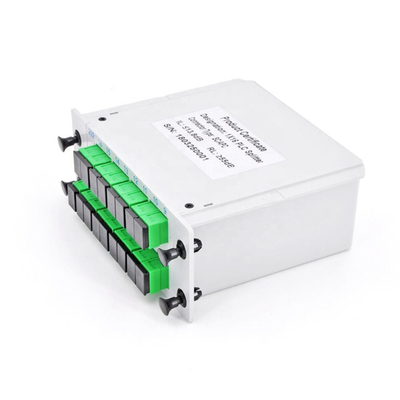

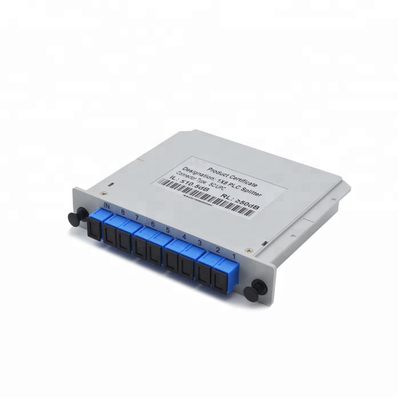

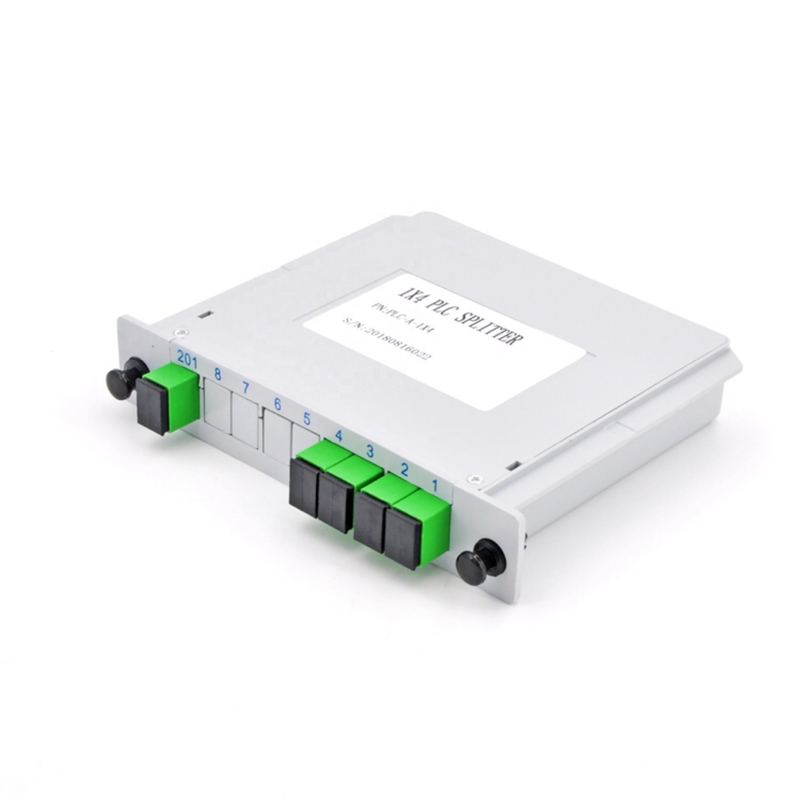

Factory supply LGX cassette module 1x8 1x16 box fiber optic plc splitter
Description:
Fiber optic coupler, is a device applicated in optical fiber systems with one or more input fibers and one or several output fibers.For the fused optical splitter,It can be divided into different ratios.such as 50/50 if the split is even, or 80/20 if 80% of the signal goes to one side and only 20% to the other.As a result of its great funciton,Optical splitter is a very important part in passive opitc networks (PON).FTB Fused fiber splitter (coupler) can do Singlemode (1310/1550nm) and Multimode (850nm).Cable diameter can be 0.9mm,2.0mm,3.0mm ,Single window,dual window and three window all we can supply .
1. Features:
1. 1xN and 2xN splitters tailored per application
2. Low Insertion Loss and low PDL
3. Superior Uniformity
4. Wide Operation Wavelength
5. Wide Operation Temperature
6. High Stability and Reliability
7.Telcordia GR-1209 and GR-1221 Compliance
8. YD/T 2000.1-2009 Compliance (TLC Product Certificate Compliance)
2. Applications:
Optic communication system
LAN
CATV
Test instrument
Fiber optic sensor
3. Specification:
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
