Подробная информация о продукте:
Оплата и доставка Условия:
|
| Product name: | Fiber Optic PLC Splitter | Package Type: | Steel Tube,Mini Type |
|---|---|---|---|
| Fiber Type: | 0.9mm Singlemode Optical Fiber Cable | Fiber Connector: | SC/APC SC/UPC |
| Pigtail Length: | 1M | Application: | Local Area Networks,FTTH,FTTX,GPON |
| Выделить: | 1X64 optical cable splitter,1X64 plc optical cable splitter,1X64 plc splitter |
||

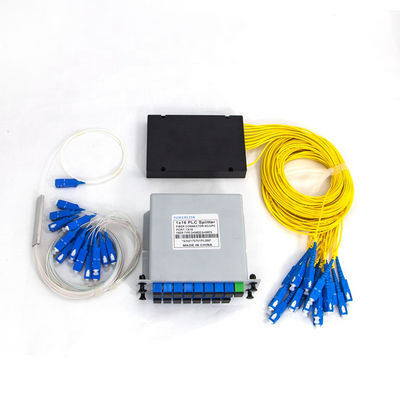

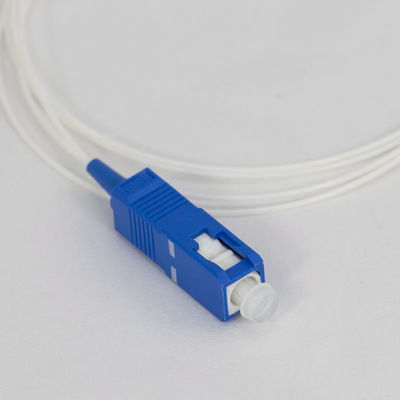

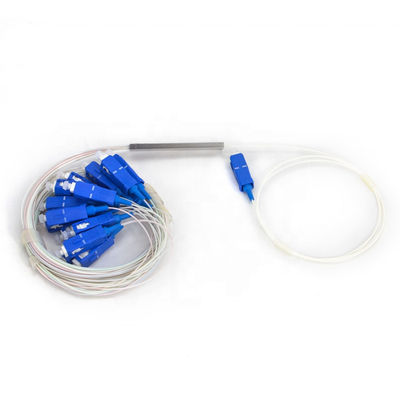

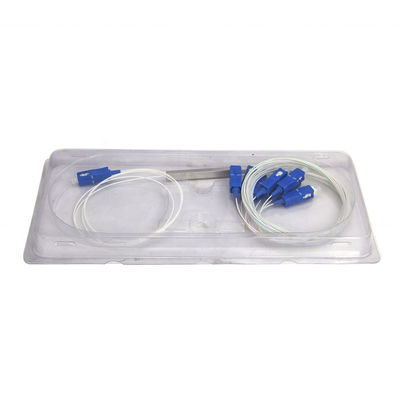

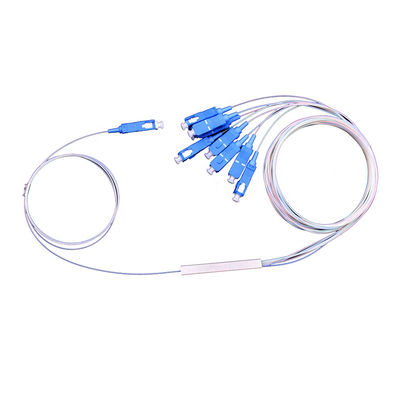

900um Steel Tube Type 1X64 Plc Optical Cable Splitter
OEM factory 1x2 1x4 1x8 1x16 1X32 1X64 plc splitter 900um steel tube type fiber optic fbt copuler splitter
Description:
PLC Splitter is Based on the Planar Waveguide Technology.
It Provides a Low Cost Power Distribution Solution with Small Form Factor and High Reliability, wide operating wavelength range and good channel-to channel uniformity, and is widely used in PON net.
The Fiber splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. Features include small size, high reliability and a wide operating wavelength.
The PLC splitter is widely used in all fiber optic networks to realize optical signal power splitting.
Features:
Low PDL
Compact Design
High Return Loss
Low Insertion loss
Uniform Power Splitting
Wide Operating Wavelength
Wide Operating Temperature
Excellent Environmental & Mechanical Stability
Qualified Under Telcordia GR-1221 and GR-1209
Applications:
CATV Systems
Test Equipments
FTTx (FTTB, FTTH, FTTC)
Passive Optical Networks (PON)
Local Area Networks (LAN)
Specifications:
| Parameter | Value | |||||||||
| Product Type | 1×2/2x2 | 1×4/2x4 | 1×8/2x8 | 1×16/2x16 | 1×32/2x32 | 1×64/2x64 | 1×128/2x128 | |||
| Wavelength(nm) | 1260~1650 | |||||||||
| I.L(dB) | Typ. | 3.6/4.2 | 7.1/7.2 | 10.4/10.6 | 13.6/13.8 | 17.2/17.5 | 20.1/20.5 | 25.0/25.2 | ||
| Max. | 4.3/4.5 | 7.4/7.6 | 10.7/11.0 | 14.0/14.8 | 18.0/18.0 | 21.5/21.5 | 25.8/25.8 | |||
| Uniformity(Max.)(dB) | 0.5/0.8 | 0.8/1.0 | 1.0/1.2 | 1.4/1.5 | 1.6/1.8 | 2.0/2.5 | 2.6/3.0 | |||
| PDL(Max.)(dB) | 0.2/0.2 | 0.3/0.3 | 0.3/0.3 | 0.3/0.3 | 0.3/03 | 0.5/0.5 | 0.8/1.0 | |||
| TDL(Max.)(dB) | 0.5 | |||||||||
| R.L(dB) | ≥50(APC)/≥50(UPC) | |||||||||
| Directivity(dB) | ≥55 | |||||||||
| Operating & Storage Temperature |
-40~+85 | |||||||||
|
Note: 1. All the data above does not include connectors. 3. For more details, please contact our sales |
||||||||||
