| Item: | SC Duplex | Color: | Beige / Aqua / Purple / Violet / Customized |
|---|---|---|---|
| Structure: | Flange or Flangeless | Materials: | Flame retardance Plastic |
| Ferrule material: | Ceramic | Cap color: | Black / Customiaed |
| Type: | OM1 OM2 OM3 OM4 | Application: | CATV,FTTH FTTB FTTX Network,LAN,Telecommunication |
| Выделить: | OM4 Multimode Fiber Coupler,OM2 OM3 Fiber Coupler,OM1 Fiber Coupler |
||

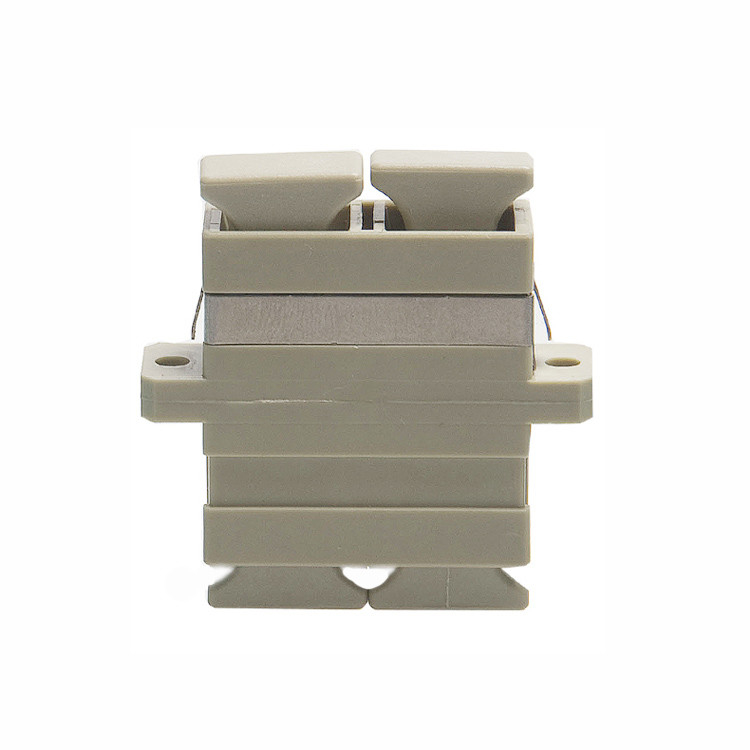

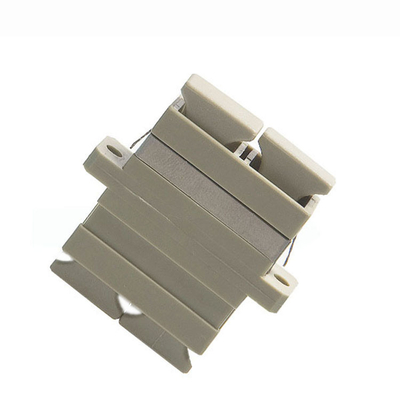

FTTH Duplex OM1 OM2 OM3 OM4 Multimode Fiber Coupler
SC / UPC Duplex multimode fiber coupler,Plastic fiber optical adapter,with Metal clip
Description:
An adapter is a mechanical device designed to align fiber-optic connectors. It contains the interconnect sleeve, that holds the two ferrules together.Fiber optic adapter is used for the connection and coupling between fiber active connectors.Choose proper type according to the splice of optical fiber active connector. Good agglomerati‐on technic to ensure the best quality, high intensity and stability.
Features:
SC mode used pluggable tight locking structure
Low insertion loss, high return loss
Good compatibility
High precision of mechanical dimensions
High reliability & stability
Ceramic or Bronze Sleeve
APC,UPC optional
Simplex / Duplex
Application:
Fiber optic communication network
Optical broadband process network
Optical instrumentation network
Telecommunication Networks
Optic Local Area Network
Adapter docking
Equipment Test
CATV System
Specification:
| Project | Values | ||
| Reference standard | IEC61754-4,IEC61300-3-33 YD/T 1272.3-2005 | ||
| Insertion loss | ≤0.3dB | ||
| IL Change absolute value | Low temperature | Temperature:-40℃ Duration:168h Temperature Change rate:1℃/min | ≤0.2dB |
| Hot and humid | Temperature:-40℃ Humidity:90%~95% Duration:168h Temperature Change rate:1℃/min | ≤0.2dB | |
| Vibration | Vibration direction:X,Y,Z Vibration time:2hours/direction Vibration amplitude:0.75mm Vibration frequency:10`55Hz | ≤0.2dB | |
| Drop | Impact height:1m Optical cable length:2.25m Impact times:5 | ≤0.2dB | |
| Temperature cycle | Temperature:-40℃to+85℃ Ultimate temperature duration:0.5h Temperature Change rate:1℃/min Cycle times:21 | ≤0.2dB | |
| Repeatability | Insertion pell times:10 | ≤0.2dB | |
| Mechanical durability (500cycles) | Insertion pell times:500 | ≤0.2dB | |
| Tensile strength of coupling mechanism | 68.6N/10 minute | ≤0.2dB | |
| Flame resistance | UL94-V0 | ||
| Pull-out force | ≤19.6N | ||
| work temperature | -25℃～75℃ | ||
| storage temperature | -40℃～80℃ | ||

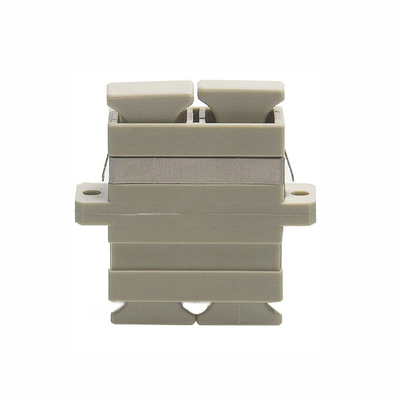

Pictures and Drawing:
