Подробная информация о продукте:
|
| Product name: | Fast connectors | Color: | Blue |
|---|---|---|---|
| Connector: | SC UPC | Length: | 55MM |
| Insertion cycle: | more than 1000 times | Application: | Telecom networks FTTX CATV |
| Выделить: | CATV Fiber Optic Connector Assembly,LC APC Fast Connector Assembly,Fast CATV Connector Assembly |
||

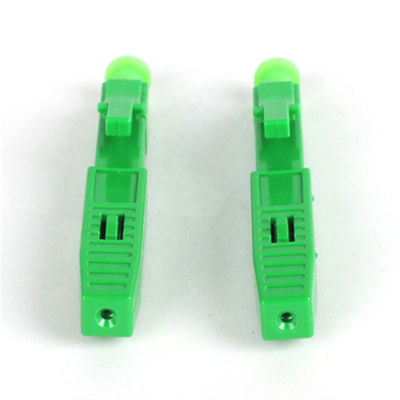

Green LC APC Fast CATV Fiber Optic Connector Assembly
Description:
1). An fiber optic quick connector terminates the end of an optical fiber, and enables quicker connection and disconnection than
splicing.
2). The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light
due to reflection or misalignment of the fibers.
Feature:
1). Low insertion loss
2). High return loss (low amounts of reflection at the interface)
3). Ease of installation
4). Low cost
5). Reliability
6). Low environmental sensitivity
7). Ease of use
Product length:50mm ≤L≤60mm
Optical Characteristics
|
Fast Connector Specification |
|||
|
Mode |
SM |
|
MM |
|
Polish |
UPC |
APC |
PC |
|
Insertion Loss |
ypical ≤0.2dB Maximum ≤0.3dB |
≤0.25dB |
|
|
Return Loss |
≥50dB |
≥65dB |
≥35dB |
|
Interchangeability |
≤0.2dB |
||
|
Repeatability |
≤0.1dB |
||
|
Durability |
≤0.2dB (1000 times mating) |
||
|
Tensile Strengh |
> 10kg |
||
|
Temperature |
≤0.2dB (-40+85 sustain 100 hours) |
||
|
Humidity |
≤0.2dB (+25+65 93 R.H.100 hours) |
||
Application:
1). CATV
2). Active device termination
3). Telecommunication networks
4). Metro
5). Local Area Networks (LANs)
6). Data processing networks
7). Test equipment
8). Premise installation
9). Wide Area Networks(WANs)

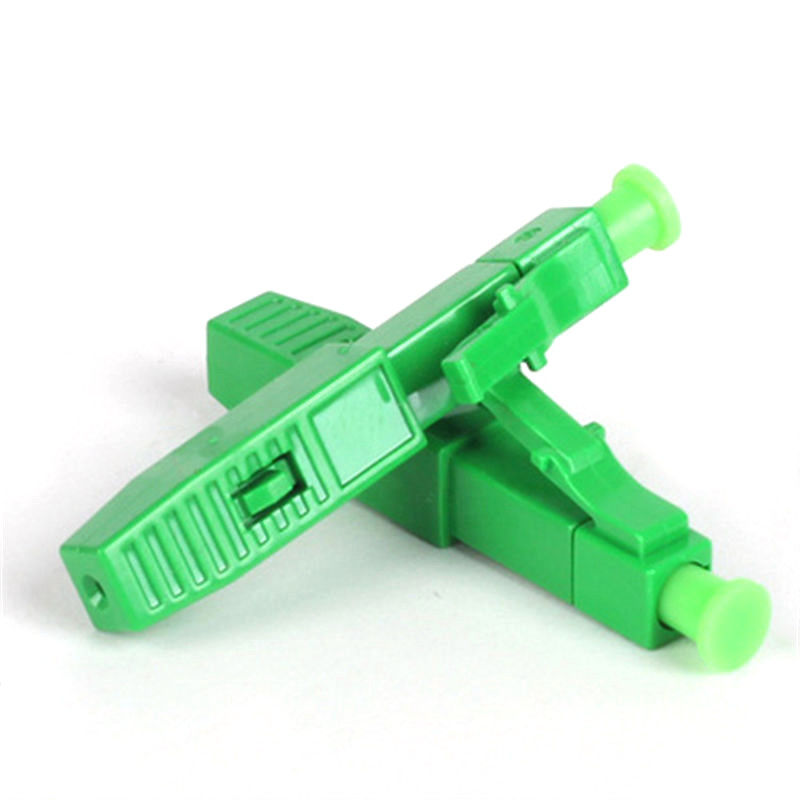

Product Picture
Operation
Factory picture
