| Item: | LC-ST hybrid adapter | LC Side: | Female |
|---|---|---|---|
| ST Side: | male | Shape: | Rectangle |
| LC Material: | Plastic | ST Material: | Zinc alloy |
| Fiber type: | Singlemode / Mutilmode | Type: | Simplex |
| Выделить: | ROSH Fiber Optic Receptacle,ROSH Fiber Receptacle,ROSH Optical Receptacle |
||

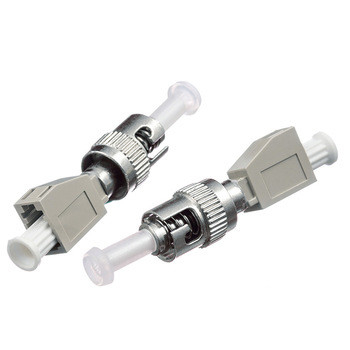

LC Female to ST male Hybrid LC-ST Fiber optic Adapter , Zinc alloy Metal to Plstic material Singlemode Simplex Coupler
Description:
The fiber optic adapter/coupler male to female is also used to connect fiber optic cables together. It offers a
solution for Hybird applications where the two different kinds of fiber optic connectors or cable assemblies
need to be connected with each other.
The main function of Hybird fiber optic adapter is for connection between various different fiber optic connectors, fiber optic patch cords, fiber optic pigtails and fiber optic equipments, different shapes, but it offers the point-to-point connection in the fiber optic network.
We provide Products, AS LC-SC/APC,LC-SC/PC,ST-LC,FC-LC,ST-SC,FC-SC,ST-FC ,etc.
Features:
Low insertion loss
High corrosion resistance
High interface performance
High return loss
Easy to handle
Environmentally stable
Sleeve material: Zirconia
Housing Material: High Quality Plastic/metal
Application:
Fiber Optic Transmission Network;
Optical Fiber Lan;
Optical fiber testing instrument;
Communication Workshop
Specification:
| Hybrid Female to male Fiber Optic Adapter | ||
| Data | Unit | |
| Insertion Loss | ≤0.3 | dB |
| Housing Material | PC | |
| SC Dust Cap Material | PBT | |
| LC Dust Cap Material | PP | |
| Metal Clip Material | SS304 Stainless Steel | |
| Flame Retardant Rating | UL94-V0 | |
| Interchangeability | ≤0.3 | dB |
| Repeatability(500 times) | ≤0.1 | dB |
| Operating Temperature | -40℃～+120℃ | ℃ |
| Storage Temperature | -40℃～+120℃ | ℃ |
Drawing and Pictures:
