| Model Number: | FTTH Drop Cable | Waterproof Rate: | IP67 |
|---|---|---|---|
| Fiber Type: | G652D,G657A, | Jacket Material:: | LSZH PE sheath |
| Connector type: | SC FC LC ST E2000 | Length: | 10M 50M 100M 150M Or Customized |
| Выделить: | G657A Sc Apc Pigtail,FTTH Sc Apc Pigtail,LSZH Sc Apc Pigtail |
||

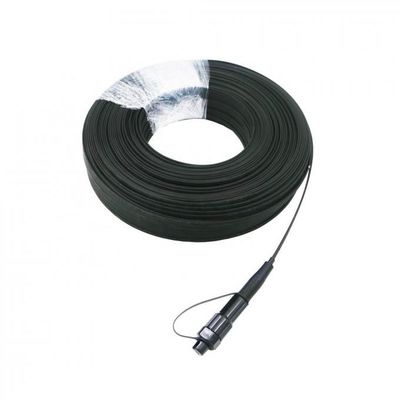

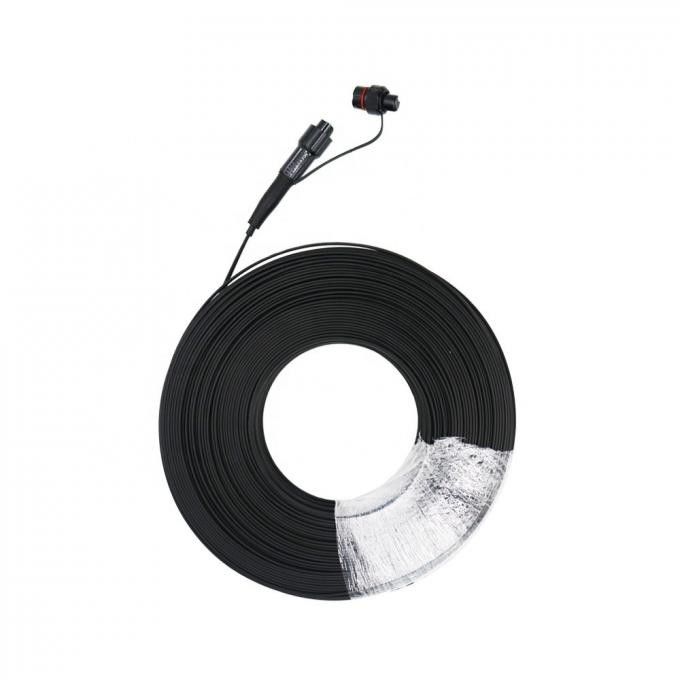

LSZH PE Sheath Jacket FTTH G657A SC APC Pigtail
FTTH drop cable pigtails pre connectorized with huawei mini SC APC connector 100/150 meters, G657A1 black LSZH jacket.
Description:
Huawei mini SC pre-terminated OSP drop cables provide easy FTTx (Fiber-To-The-X) installation and termination using existing hardware and installation methods for drops to homes and businesses. it compatible Mini SC always come with 2.0*3.0mm self-supporting drop cable, 3.0mm indoor cable, or 5.0mm round cable. Its flat profile is compatible with existing wedge (P) clamps.CY COM also provide another mini SC connector with Corning Optitap connector compatiable.
FEATURES
IP67 Water immersion and Dust protection for hash environment ·
Push-pull insertion with bayonet-style mechanical latch provides easy installation and removal
Cost effective solution for in house termination
Simple assembly requiring no special tools
Application
Outdoor communication equipment connection
waterproof fiber equipment SC port
Remote wireless base station
FTTx wiring projectFiber optic communications in harsh outdoor environments
Cable Specification:
| Application | Aerial, Direct Buried, Duct |
| Cable Type | Outdoor Cable |
| Fiber Type | G657A1/G657A2/G657B3, customized |
| Termination | One end or both ends |
| Product Type | Drop Assemblies |
| Connector A | Huawei Mini SC APC Connector |
| Connector B | No connector, SC APC or Huawei Mini SC APC Connector |
| Cable Length | Customized |
| Operation Temperature | -40 °C to 70 °C (-40 °F to 158 °F) |
| Insertion Loss | ≤0.2dB |
| Return Loss | ≥55dB |
