| Polarity: | A/B/C | Loss data: | Elite loss/Standard loss |
|---|---|---|---|
| Connector type: | Female / Male | Cable color: | Aqua / Wathet blue |
| Cable Material: | LSZH / OFNP / PVC | Fiber type: | OM3 |
| LC Connector Type: | Duplex / Simplex / Uniboot | Breakout lengthe: | 0.5M / 1M /1.5M / Customized |
| Выделить: | OM3 MPO MTP,Multimode OM3 MPO,OM3 MPO Fiber Cable |
||

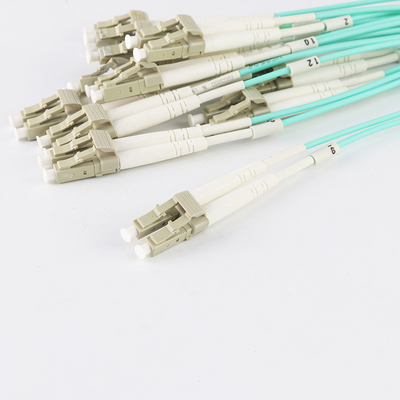

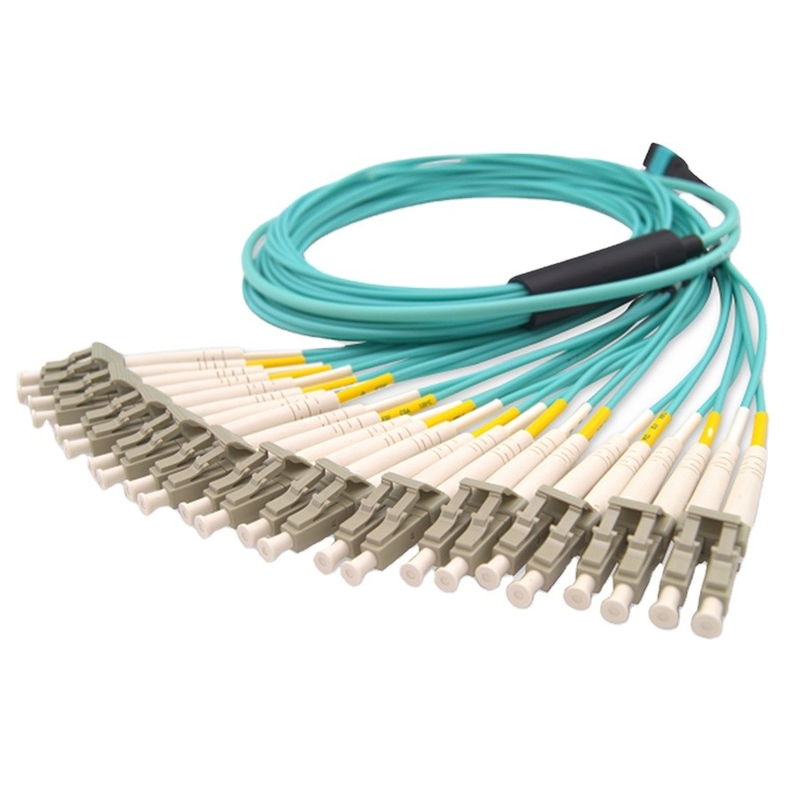

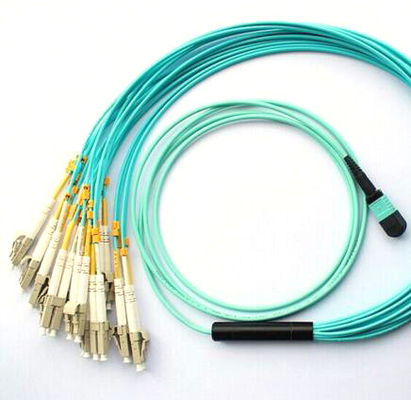

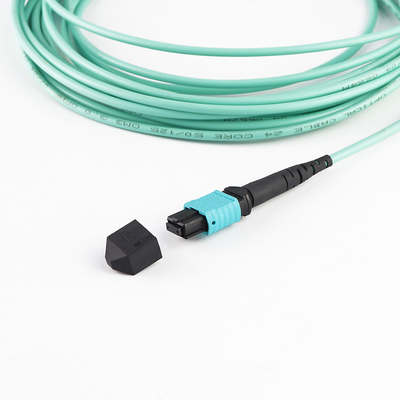

24 Core LC Duplex Multimode OM3 MPO MTP Fiber Cable
24core MPO-LC Duplex Simplex Uniboot Breakout Patch Cord Mutilmode OM3 Elite standard
Description:
MPO/MTP is the high density of optical fiber pre-connect system which is generally use in three areas.
· The data center application with high density environment
· The optical fiber to the building
· The internal connector application in fiber equipment such as Splitter,40G / 100G SFP and SFP
Features:
◆ High Performance in IL & RL
◆ 4,8,12 and 24 fiber connector terminations and assemblies
◆ Designed for low loss and standard loss SM and MM applications
◆ Economical solution for mass-termination of fiber
◆ Suitable for MPO/MTP application
◆ Ruggedized round cable, oval cable and bare ribbon options available
◆ Color coded housings available to differentiate fiber type, polish type and/or connector grade
Applications:
Local Area Network (LAN)
Data communication network
Telecommunication optical transmission network
Optical access network(OAN)
Active device termination
Fiber optics data transmission(FODT)
Test Equipment
CATV
Specifications:
| Connector Type | Performance Level | |||||
| Standard | Elite | |||||
| Connector | Mode | Endface | IL(dB) | RL(dB) | IL(dB) | RL(dB) |
| LC/SC/FC/ST | SM | PC | ≤0.2 | ≥50 | ≤0.15 | ≥50 |
| UPC | ≤0.2 | ≥55 | ≤0.15 | ≥55 | ||
| APC | ≤0.2 | ≥60 | ≤0.15 | ≥60 | ||
| MM | PC | ≤0.2 | ≥35 | ≤0.15 | ≥35 | |
| MPO/MTP | SM | APC | ≤0.7 | ≥60 | ≤0.35 | ≥60 |
| MM | PC | ≤0.5 | ≥20 | ≤0.35 | ≥20 | |
| MTRJ | SM | PC | ≤0.5 | ≥50 | / | / |
| MM | PC | ≤0.5 | ≥35 | / | / | |
Order infomation:
| Range of Mode | Single mode or Multi mode |
| Cable Type | Simplex, Duplex Ziocord. or Multi-cores |
| Connector Style | SC, FC, ST, LC, MTRJ, E2000, MU, MPO /MTP.etc |
| Polish or Ferrule Interface Type | PC, UPC, APC |
| Cable Diameter | 0.9mm, 1.2mm, 1.6mm, 1.8mm,2.0mm, 3.0mm |
| Outer Jacket | PVC /LSZH/OFNP |
| Jacket Color | SM Yellow | OM1, OM2 Orange | OM3 Aqua | OM4 Aqua or Violet | OM5 Lemon Green |
| Durability | 500 cycles(0.2 dB max increase). 1000mate/de mate cycles |
| Operating Temp. | -25℃ to +70℃ |
| Storage Temp. | -40℃ to +85℃ |
