Подробная информация о продукте:
Оплата и доставка Условия:
|
| Polarity: | A/B/C | Loss data: | Elite loss/Standard loss |
|---|---|---|---|
| MPO Connector: | Female / Male | Cable color: | 12 Color |
| Cable Material: | LSZH / OFNP / PVC | Fiber type: | OM1 OM2 OM3 OM4 |
| SC Connector Type: | UPC | Cable diameter: | 0.9mm |
| Выделить: | om3 multimode fiber optic cable,OM2 Multimode Fiber Optic Cable,0.9mm Multimode Fiber Optic Cable |
||

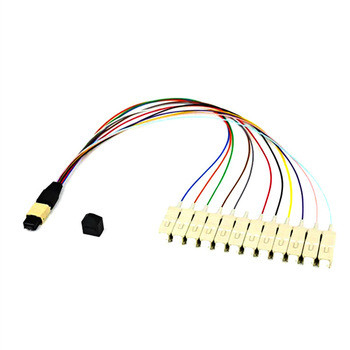

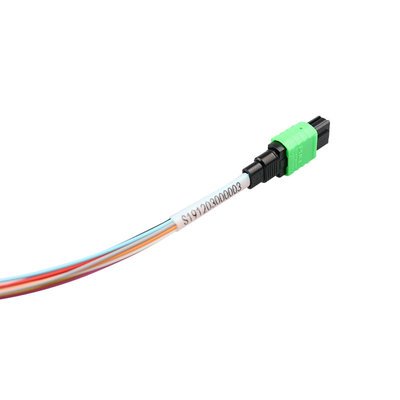

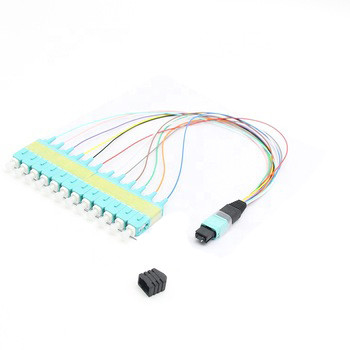

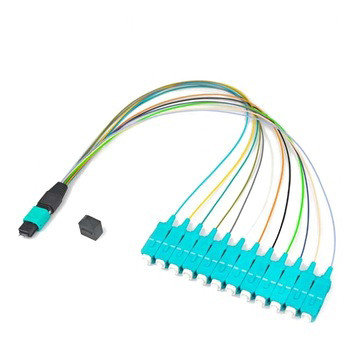

SC UPC 0.9mm OM2 Om3 Multimode Fiber Optic Cable
MPO-12 SC UPC 0.9mm Mutil mode cable MPO OM3 Fan-out MM Patch Cord 12 Fiber corlor
Description:
MPO/MTP multi-fiber cabling system is ideally suited for a high density environment that demands space saving and innovative cable management solutions. The spring - loaded push/pull locking mechanism of the MPO is easy to handle while guaranteeing the secure mating of the connectors. High- precision guiding pins ensure the exact adjustment of the ferrule. t offered in fiber types in standard 8, 12, 24 or 48 cores versions using a compact , and with multimode and singlemode fibres secure transition between MPO/MTP and LC or SC connections.
Features:
Push-pull latching
Easy assembly, no crimp tool needed
Alignment achieved with high precision guide pins
Designed for low loss and standard loss SM and MM applications
Ruggedized round cable, oval cable and bare ribbon options available
Color coeed housings available to differentiate fiber type, polish type and/or
connector grade
Specification Single Mode Multi mode Insertion Loss 0.50dB Typical (all fibers)0.30dB Typical (all fibers)
0.6dB Maximum (Single fiber) 0.50dB Maximum (Single fiber)
Return Loss ≥60dB (8° Angle Polish) >20dB Durability
<0.30dB change <0.20dB change` Operating Temperature -40°C~+80°C
Application:
CATV
Active dvice termination
Telecommunication networks
Metro
Local Area Networks(LANs)
Data Processing networks
Test Equipment
Premise installations.
Wide Area Networks(WANs)
Drawing and Product Picture:
